Specifications library

Sensors

64 products

64 products found

Product	Family	Application	Housing	Shape	Sn	Mounting	Output	Connection	Length	Armor	IP	Coating	Coating Type	Material (body)	LED on Sensor	NOTE 1	Cable Exit Direction	Cable Jacket	Cable Sheath Inner	Connector LED	Connector Material	Correction Factors	Dimensions	Hysteresis	LED on Connector	Material (Face)	Max Output Current	No-Load Current	Operating Temperature	Repeat Accuracy	Response Time	Special Features	Supply Voltage	Switching Frequency	TARGETS	Voltage Drop	WD Bag Size	WD Bag Type	WD Insert Type	WD Label Type	WD Part Mark Type
Add WSI-1204HL-FG2Z M12 threaded barrel 4 mm DC 2-wire View spec	STANDARD	WELDING	M12 threaded barrel	Cylindrical	4 mm	Flush	DC 2-wire	N/A	2m	FLEXLINC DOUBLELOC STAINLESS-36"	IP 67	FLEXKOTE	Z	Brass	YES	—	Straight	PVC	2 × 0.34 mm²	YELLOW	N/A	Steel FE 360: 100% Aluminum: 35%	M12 × 35 mm	10% Sr typ.	NO	HYPERFACE	100 mA	≤ 0.6 mA	–25 … +70 °C	0.2 mm	< 0.5 ms	Increased operating distance (4 mm), built-in yellow LED, short-circuit protection, induction protection, non-polarized 2-wire, short housing versions available, EMC protected (IEC 60947-5-2)	10 … 65 VDC	≤ 2,000 Hz	Steel	≤ 5.0 V at 100 mA	—	—	—	—	—
Add WSI-1202HL-XJ2Z-ET M12 2 mm AC/DC 2Wire NO (Polarity Independent) View spec	STANDARD	WELDING	M12	Cylindrical	2 mm	Flush	AC/DC 2Wire NO (Polarity Independent)	N/A	2m	FLEXLINC DOUBLELOC STAINLESS-36"	IP68	FLEXKOTE	Z	Brass	YES	Ext. Temp, WFI,	Straight	PUR	NA	N/A	N/A	Steel 100%, Al 100%	M12 x 50mm	3…15%	NO	HYPERFACE	≤100 mA	≤ 1.7 mA	-25…+85°C	≤2%	—	Weld-immune	20-250VAC 10-300VDC	20hz	Steel	≤6.0 V	—	—	—	—	—

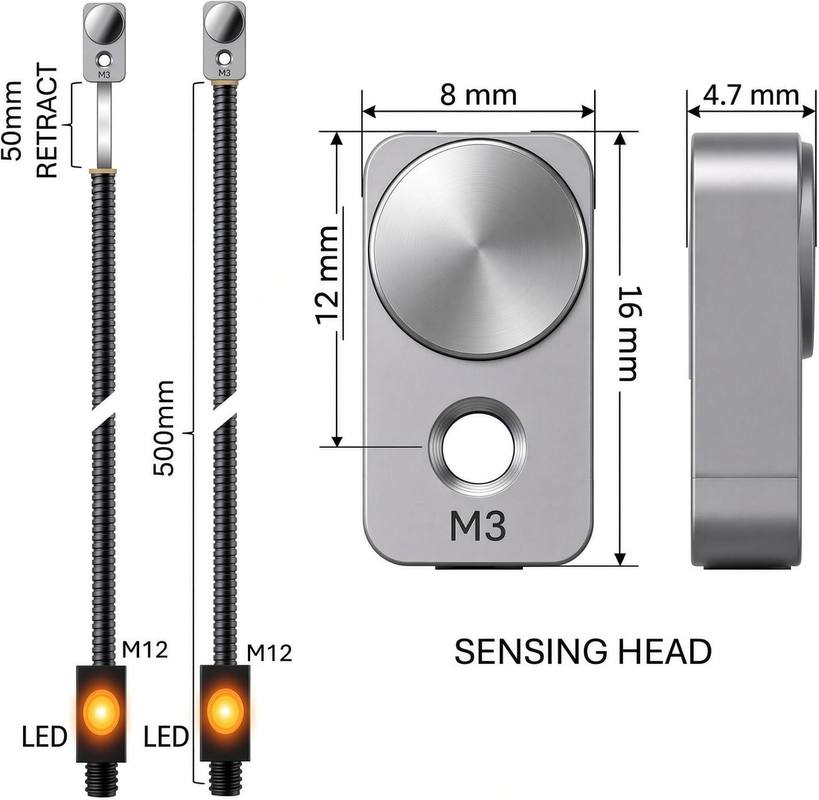

Add WSI-1602-MAAZ Mini Flat Pack 2 mm PNP View spec	STANDARD	WELDING	Mini Flat Pack	Rectangle	2 mm	Flush	PNP	M12	0.5m	ACTIVFLEX TUBULAR	IP67	FLEXKOTE	Z	Alloy	NO	Standard Temperature	Straight	—	PTFE	Green	Overmoded	Steel 100 %, St Steel 75 %, Al 50 %	16×8×4.7	2–20%	YES	HYPERFACE	<100 mA	≤12 mA	-25…+75°C	—	—	M3 Mount	9–30 VDC	5 kHz	Steel, Aluminum	<2 V	—	—	—	—	—
Add WSI-1602-MABH Mini Flat Pack 2 mm PNP View spec	STANDARD	WELDING	Mini Flat Pack	Rectangle	2 mm	Flush	PNP	M8 3P	0.5m	ACTIVFLEX TUBULAR	IP67	FLEXKOTE	Z	Alloy	NO	Standard Temperature	Straight	—	PTFE	Green	Overmoded	Steel 100 %, St Steel 75 %, Al 50 %	16×8×4.7	2–20%	YES	HYPERFACE	<100 mA	≤12 mA	-25…+75°C	—	—	M3 Mount	9–30 VDC	5 kHz	Steel, Aluminum	<2 V	—	—	—	—	—
Add WSI-1602-MDAZ Mini Flat Pack 2 mm NPN View spec	STANDARD	WELDING	Mini Flat Pack	Rectangle	2 mm	Flush	NPN	M12	0.5m	ACTIVFLEX TUBULAR	IP67	FLEXKOTE	Z	Alloy	NO	Standard Temperature	Straight	—	PTFE	Green	Overmoded	Steel 100 %, St Steel 75 %, Al 50 %	16×8×4.7	2–20%	YES	HYPERFACE	<100 mA	≤12 mA	-25…+75°C	—	—	M3 Mount	9–30 VDC	5 kHz	Steel, Aluminum	<2 V	—	—	—	—	—
Add WSI-1602HL-FAAZ-O Mini Flat Pack 2 mm PNP View spec	HYPERLIFE	WELDING	Mini Flat Pack	Rectangle	2 mm	Flush	PNP	M12	0.5m	FLEXLINC SPRINGLOC STAINLESS	IP67	FLEXKOTE	Z	Alloy	NO	Standard Temperature	Straight	—	PTFE	Green	Overmoded	Steel 100 %, St Steel 75 %, Al 50 %	16×8×4.7	2–20%	YES	HYPERFACE	<100 mA	≤12 mA	-25…+75°C	—	—	M3 Mount	9–30 VDC	5 kHz	Steel, Aluminum	<2 V	—	—	—	—	—
Add WSI-1602HL-FABZ-O Mini Flat Pack 2 mm PNP View spec	HYPERLIFE	WELDING	Mini Flat Pack	Rectangle	2 mm	Flush	PNP	M8 3P	0.5m	FLEXLINC SPRINGLOC STAINLESS	IP67	FLEXKOTE	Z	Alloy	NO	Standard Temperature	Straight	—	PTFE	Green	Overmoded	Steel 100 %, St Steel 75 %, Al 50 %	16×8×4.7	2–20%	YES	HYPERFACE	<100 mA	≤12 mA	-25…+75°C	—	—	M3 Mount	9–30 VDC	5 kHz	Steel, Aluminum	<2 V	—	—	—	—	—
Add WSI-1602HL-FDAZ-O Mini Flat Pack 2 mm NPN View spec	HYPERLIFE	WELDING	Mini Flat Pack	Rectangle	2 mm	Flush	NPN	M12	0.5m	FLEXLINC SPRINGLOC STAINLESS	IP67	FLEXKOTE	Z	Alloy	NO	Standard Temperature	Straight	—	PTFE	Green	Overmoded	Steel 100 %, St Steel 75 %, Al 50 %	16×8×4.7	2–20%	YES	HYPERFACE	<100 mA	≤12 mA	-25…+75°C	—	—	M3 Mount	9–30 VDC	5 kHz	Steel, Aluminum	<2 V	—	—	—	—	—
Add WSI-1602HL-FAAZ Mini Flat Pack 2 mm PNP View spec	HYPERLIFE	WELDING	Mini Flat Pack	Rectangle	2 mm	Flush	PNP	M12	0.5m	FLEXLINC SPRINGLOC STAINLESS	IP67	FLEXKOTE	Z	Alloy	NO	Standard Temperature	Straight	—	PTFE	AMBER	FEP over METAL	Steel 100 %, St Steel 75 %, Al 50 %	16×8×4.7	2–20%	YES	HYPERFACE	<100 mA	≤12 mA	-25…+75°C	—	—	M3 Mount	9–30 VDC	5 kHz	Steel, Aluminum	<2 V	—	—	—	—	—
Add WSI-1602HL-FABZ Mini Flat Pack 2 mm PNP View spec	HYPERLIFE	WELDING	Mini Flat Pack	Rectangle	2 mm	Flush	PNP	M8 3P	0.5m	FLEXLINC SPRINGLOC STAINLESS	IP67	FLEXKOTE	Z	Alloy	YES	Standard Temperature	Straight	—	PTFE	NONE	FEP over METAL	Steel 100 %, St Steel 75 %, Al 50 %	16×8×4.7	2–20%	NO	HYPERFACE	<100 mA	≤12 mA	-25…+75°C	—	—	M3 Mount	9–30 VDC	5 kHz	Steel, Aluminum	<2 V	—	—	—	—	—
Add WSI-1602HL-FDAZ Mini Flat Pack 2 mm NPN View spec	HYPERLIFE	WELDING	Mini Flat Pack	Rectangle	2 mm	Flush	NPN	M12	0.5m	FLEXLINC SPRINGLOC STAINLESS	IP67	FLEXKOTE	Z	Alloy	NO	Standard Temperature	Straight	—	PTFE	AMBER	FEP over METAL	Steel 100 %, St Steel 75 %, Al 50 %	16×8×4.7	2–20%	YES	HYPERFACE	<100 mA	≤12 mA	-25…+75°C	—	—	M3 Mount	9–30 VDC	5 kHz	Steel, Aluminum	<2 V	—	—	—	—	—
Add WSI-1602HL-FAAZ-ET Mini Flat Pack 2 mm PNP View spec	HYPERLIFE	WELDING	Mini Flat Pack	Rectangle	2 mm	Flush	PNP	M12	0.5m	FLEXLINC SPRINGLOC STAINLESS	IP67	FLEXKOTE	Z	Alloy	NO	Extended Temperature	Straight	—	PTFE	AMBER	FEP over METAL	Steel 100% Stainless St 70%, Al 30%	16×8×4.7	3–15%	YES	HYPERFACE	≤100 mA	≤15 mA	0…+85°C	≤2%	—	Extra flat, M3 bore	10–30 VDC	1 kHz	Steel Only	≤1.8 V	—	—	—	—	—
Add WSI-1602-FABZ-ET Mini Flat Pack 2 mm PNP View spec	HYPERLIFE	WELDING	Mini Flat Pack	Rectangle	2 mm	Flush	PNP	M8 3P	0.5m	FLEXLINC SPRINGLOC STAINLESS	IP67	FLEXKOTE	Z	Alloy	YES	Extended Temperature	Straight	—	PTFE	NONE	FEP over METAL	Steel 100% Stainless St 70%, Al 30%	16×8×4.7	3–15%	NO	HYPERFACE	≤100 mA	≤15 mA	0…+85°C	≤2%	—	Extra flat, M3 bore	10–30 VDC	1 kHz	Steel Only	≤1.8 V	—	—	—	—	—
Add WSI-1602-FDBZ-ET Mini Flat Pack 2 mm NPN View spec	HYPERLIFE	WELDING	Mini Flat Pack	Rectangle	2 mm	Flush	NPN	M8 3P	0.5m	FLEXLINC SPRINGLOC STAINLESS	IP67	FLEXKOTE	Z	Alloy	YES	Extended Temperature	Straight	—	PTFE	NONE	FEP over METAL	Steel 100% Stainless St 70%, Al 30%	16×8×4.7	3–15%	NO	HYPERFACE	≤100 mA	≤15 mA	0…+85°C	≤2%	—	Extra flat, M3 bore	10–30 VDC	1 kHz	Steel Only	≤1.8 V	—	—	—	—	—
Add WSI-1602HL-FAAZ-HT Mini Flat Pack 2 mm PNP View spec	HYPERLIFE	WELDING	Mini Flat Pack	Rectangle	2 mm	Flush	PNP	M12	0.5m	FLEXLINC SPRINGLOC STAINLESS	IP67	FLEXKOTE	Z	Alloy	NO	High Temperature	Straight	—	PTFE	AMBER	FEP over METAL	Steel 100% Stainless St 70%, Al 30%	16×8×4.7	3–15%	YES	HYPERFACE	≤100 mA	≤15 mA	0…+100°C	≤2%	—	Extra flat, M3 bore	10–30 VDC	1 kHz	Steel Only	≤1.8 V	—	—	—	—	—
Add WSI-1602HL-FABZ-HT Mini Flat Pack 2 mm PNP View spec	HYPERLIFE	WELDING	Mini Flat Pack	Rectangle	2 mm	Flush	PNP	M8 3P	0.5m	FLEXLINC SPRINGLOC STAINLESS	IP67	FLEXKOTE	Z	Alloy	YES	High Temperature	Straight	—	PTFE	N/A	FEP over METAL	Steel 100% Stainless St 70%, Al 30%	16×8×4.7	3–15%	NO	HYPERFACE	≤100 mA	≤15 mA	0…+100°C	≤2%	—	Extra flat, M3 bore	10–30 VDC	1 kHz	Steel Only	≤1.8 V	—	—	—	—	—
Add WSI-1602HL-FDAZ-HT Mini Flat Pack 2 mm NPN View spec	HYPERLIFE	WELDING	Mini Flat Pack	Rectangle	2 mm	Flush	NPN	M12	0.5m	FLEXLINC SPRINGLOC STAINLESS	IP67	FLEXKOTE	Z	Alloy	NO	High Temperature	Straight	—	PTFE	AMBER	FEP over METAL	Steel 100% Stainless St 70%, Al 30%	16×8×4.7	3–15%	YES	HYPERFACE	≤100 mA	≤15 mA	0…+100°C	≤2%	—	Extra flat, M3 bore	10–30 VDC	1 kHz	Steel Only	≤1.8 V	—	—	—	—	—
Add WSI-2802-XA2Z Midi Flat Pack 2 mm PNP View spec	CUSTOM	WELDING	Midi Flat Pack	Rectangle	2 mm	Flush	PNP	N/A	2m	ACTIVFLEX TUBULAR	IP67	FLEXKOTE	Z	Alloy	YES	All Non-Metallic Housing	Straight	PVC	N/A	N/A	N/A	Steel 100% Stainless St 70%, Al 30%	28×8×5.5	3–15%	NO	HYPERFACE	≤150 mA	≤15 mA	-25…+70°C	≤2%	—	Metal Body	10–30 VDC	2 kHz	Steel Only	≤1.8 V	—	—	—	—	—
Add WSI-2802-XAAZ Midi Flat Pack 2 mm PNP View spec	CUSTOM	WELDING	Midi Flat Pack	Rectangle	2 mm	Flush	PNP	M12	0.5m	N/A	IP67	FLEXKOTE	Z	Alloy	YES	All Non-Metallic Housing	Straight	PVC	N/A	N/A	PA66	Steel 100% Stainless St 70%, Al 30%	28×8×5.5	3–15%	NO	HYPERFACE	≤150 mA	≤15 mA	-25…+70°C	≤2%	—	Metal Body	10–30 VDC	2 kHz	Steel Only	≤1.8 V	—	—	—	—	—
Add WSI-2802-TAAZ Midi Flat Pack 2 mm PNP View spec	CUSTOM	WELDING	Midi Flat Pack	Rectangle	2 mm	Flush	PNP	M12	0.5m	ACTIVFLEX TUBULAR	IP67	FLEXKOTE	Z	Alloy	YES	All Non-Metallic Housing	Straight	PVC	N/A	N/A	PA66	Steel 100% Stainless St 70%, Al 30%	28×8×5.5	3–15%	NO	HYPERFACE	≤150 mA	≤15 mA	-25…+70°C	≤2%	—	Metal Body	10–30 VDC	2 kHz	Steel Only	≤1.8 V	—	—	—	—	—
Add WSI-2802-FAAZ Midi Flat Pack 2 mm PNP View spec	CUSTOM	WELDING	Midi Flat Pack	Rectangle	2 mm	Flush	PNP	M12	0.5m	FLEXLINC SPRINGLOC STAINLESS	IP67	FLEXKOTE	Z	Alloy	NO	All Non-Metallic Housing	Straight	PVC	N/A	AMBER	FEP over METAL	Steel 100% Stainless St 70%, Al 30%	28×8×5.5	3–15%	YES	HYPERFACE	≤150 mA	≤15 mA	-25…+70°C	≤2%	—	Metal Body	10–30 VDC	2 kHz	Steel Only	≤1.8 V	—	—	—	—	—
Add WSI-3207HL-FAAZ Flat Pack 7 mm PNP View spec	HYPERLIFE	WELDING	Flat Pack	Rectangle	7 mm	Flush	PNP	M12	0.5m	FLEXLINC DOUBLELOC STAINLESS	IP67–IP69K	FLEXKOTE	Z	Metal Alloy	NO	INTEGRATED FLEXLINC	Straight	—	N/A	AMBER	FEP over METAL	Steel 100% Stainless St 70%, Al 30%	32×20	3–15%	YES	Stainless Alloy	≤200 mA	≤10 mA	-25…+85°C	≤0.3 mm	—	Rectangular weld-immune	10–30 VDC	~1 kHz	Steel, Aluminum	≤2 V	—	—	—	—	—
Add WSI-3207HL-L-FAAZ Flat Pack 7 mm PNP View spec	HYPERLIFE	WELDING	Flat Pack	Rectangle	7 mm	Flush	PNP	M12	0.5m	FLEXLINC DOUBLELOC STAINLESS	IP67–IP69K	FLEXKOTE	Z	Metal Alloy	NO	INTEGRATED FLEXLINC	Left	—	N/A	AMBER	FEP over METAL	Steel 100% Stainless St 70%, Al 30%	32×20	3–15%	YES	Stainless Alloy	≤200 mA	≤10 mA	-25…+85°C	≤0.3 mm	—	Rectangular weld-immune	10–30 VDC	~1 kHz	Steel, Aluminum	≤2 V	—	—	—	—	—
Add WSI-3207HL-R-FAAZ Flat Pack 7 mm PNP View spec	HYPERLIFE	WELDING	Flat Pack	Rectangle	7 mm	Flush	PNP	M12	0.5m	FLEXLINC DOUBLELOC STAINLESS	IP67–IP69K	FLEXKOTE	Z	Metal Alloy	NO	INTEGRATED FLEXLINC	Right	—	N/A	AMBER	FEP over METAL	Steel 100% Stainless St 70%, Al 30%	32×20	3–15%	YES	Stainless Alloy	≤200 mA	≤10 mA	-25…+85°C	≤0.3 mm	—	Rectangular weld-immune	10–30 VDC	~1 kHz	Steel, Aluminum	≤2 V	—	—	—	—	—
Add WSI-041.5 M4 1.5 mm PNP, NPN View spec	CUSTOM	WELDING	M4	Cylindrical	1.5 mm	Flush	PNP, NPN	N/A	2m	ACTIVFLEX TUBULAR	IP67	FLEXKOTE	Z	304 Stainless	YES	Miniature F1	Straight	—	N/A	N/A	N/A	Steel 100% Stainless St 75%, Al 40%	Ø4×25/38	≤10%	N/A	High Temp Epoxy	≤200 mA	≤10 mA	-25…+70°C	0.03 mm	—	Ultra-mini Ø4 mm	10–30 VDC	≤3 kHz	Steel Only	≤2 V	—	—	—	—	—
Add WSI-05.08-TA2Z M5 0.8mm PNP View spec	CUSTOM	WELDING	M5	Cylindrical	0.8mm	Flush	PNP	N/A	2m	ACTIVFLEX TUBULAR	IP67	FLEXKOTE	Z	304 Stainless	YES	Miniature F1	Straight	—	N/A	N/A	N/A	Steel 100% Stainless St 80%, Al 50%	Ø5×25	≤10%	N/A	High Temp Epoxy	≤200 mA	≤10 mA	-25…+70°C	0.03 mm	—	Increased distance	10–30 VDC	≤3kHz	Steel Only	≤2 V	—	—	—	—	—
Add WSI-051.5-TD2Z M5 1.5 mm NPN View spec	CUSTOM	WELDING	M5	Cylindrical	1.5 mm	Flush	NPN	N/A	2m	ACTIVFLEX TUBULAR	IP67	FLEXKOTE	Z	304 Stainless	YES	Miniature F1	Straight	—	N/A	N/A	N/A	Steel 100% Stainless St 75%, Al 40%	Ø5×25	≤10%	N/A	High Temp Epoxy	≤200 mA	≤10 mA	-25…+70°C	0.03 mm	—	Increased distance	10–30 VDC	≤3 kHz	Steel Only	≤2 V	—	—	—	—	—
Add WSI-051.5-TA2Z M5 1.5 mm PNP View spec	CUSTOM	WELDING	M5	Cylindrical	1.5 mm	Flush	PNP	N/A	2m	ACTIVFLEX TUBULAR	IP67	FLEXKOTE	Z	304 Stainless	YES	Miniature F1	Straight	—	N/A	N/A	N/A	Steel 100% Stainless St 75%, Al 40%	Ø5×25	≤10%	N/A	High Temp Epoxy	≤200 mA	≤10 mA	-25…+70°C	0.03 mm	—	Increased distance	10–30 VDC	≤3 kHz	Steel Only	≤2 V	—	—	—	—	—
Add WSI-051.5-TAAZ M5 1.5 mm PNP View spec	CUSTOM	WELDING	M5	Cylindrical	1.5 mm	Flush	PNP	M12	0.5mm	ACTIVFLEX TUBULAR	IP67	FLEXKOTE	Z	304 Stainless	YES	Miniature F1	Straight	—	N/A	N/A	Plastiv Field Attachable	Steel 100% Stainless St 75%, Al 40%	Ø5×25	≤10%	N/A	High Temp Epoxy	≤200 mA	≤10 mA	-25…+70°C	0.03 mm	—	Increased distance	10–30 VDC	≤3 kHz	Steel Only	≤2 V	—	—	—	—	—
Add WSI-051.5-TAAZ-O M5 1.5 mm PNP View spec	CUSTOM	WELDING	M5	Cylindrical	1.5 mm	Flush	PNP	M12	0.5mm	ACTIVFLEX TUBULAR	IP67	FLEXKOTE	Z	304 Stainless	YES	Miniature F1	Straight	—	N/A	GREEN	Overmolded	Steel 100% Stainless St 75%, Al 40%	Ø5×25	≤10%	YES	High Temp Epoxy	≤200 mA	≤10 mA	-25…+70°C	0.03 mm	—	Increased distance	10–30 VDC	≤3 kHz	Steel Only	≤2 V	—	—	—	—	—
Add WSI-052.5-TA2Z M5 2.5 mm PNP, NPN View spec	CUSTOM	WELDING	M5	Cylindrical	2.5 mm	Quasi-Flush	PNP, NPN	N/A	2m	ACTIVFLEX TUBULAR	IP67	FLEXKOTE	Z	304 Stainless	YES	Miniature F1	Straight	—	N/A	N/A	N/A	Steel 100% Stainless St 67%, Al 33%	Ø5×25	3–15%	N/A	High Temp Epoxy	≤200 mA	≤10 mA	-25…+70°C	≤0.03 mm	—	High accuracy	10–30 VDC	800 Hz	Steel, Aluminum	≤2 V	—	—	—	—	—
Add WSI-052.5-TAAZ-O M5 2.5 mm PNP, NPN View spec	CUSTOM	WELDING	M5	Cylindrical	2.5 mm	Quasi-Flush	PNP, NPN	M12	0.5mm	ACTIVFLEX TUBULAR	IP67	FLEXKOTE	Z	304 Stainless	YES	Miniature F1	Straight	—	N/A	GREEN	Overmolded	Steel 100% Stainless St 67%, Al 33%	Ø5×25	3–15%	YES	High Temp Epoxy	≤200 mA	≤10 mA	-25…+70°C	≤0.03 mm	—	High accuracy	10–30 VDC	800 Hz	Steel, Aluminum	≤2 V	—	—	—	—	—
Add WSI-0503 M5 3 mm PNP, NPN View spec	CUSTOM	WELDING	M5	Cylindrical	3 mm	Quasi-Flush	PNP, NPN	N/A	2m	ACTIVFLEX TUBULAR	IP67	FLEXKOTE	Z	304 Stainless	YES	Miniature F1	Straight	—	N/A	N/A	N/A	Steel 100% Stainless St 85%, Al 100%	Ø5×~30	3–15%	N/A	High Temp Epoxy	≤200 mA	≤10 mA	-25…+85°C	≤0.15 mm	—	Factor 1 on Fe/Al	10–30 VDC	≤1.2 kHz	Steel, Aluminum	≤2 V	—	—	—	—	—
Add WSI-0802-SA2Z M8 2 mm PNP View spec	STANDARD	WELDING	M8	Cylindrical	2 mm	Flush	PNP	N/A	2m	ACTIVFLEX TUBULAR	IP67/IP69K	FLEXKOTE	Z	304 Stainless	YES	M8 Shorty	Straight	—	N/A	N/A	N/A	Steel=1 Al=0 Brass=0 SS=0.3	M8×20.4	1–20%	N/A	HYPERFACE	≤200 mA	≤10 mA	-25…+85°C	<5%	—	Steel Targets Only	10–30 VDC	250 Hz	Steel Only	≤1.5 V	—	—	—	—	—
Add WSI-0802-FA2Z M8 2 mm PNP View spec	STANDARD	WELDING	M8	Cylindrical	2 mm	Flush	PNP	N/A	2m	FLEXLINC SPRINGLOC STAINLESS	IP67/IP69K	FLEXKOTE	Z	304 Stainless	YES	M8 Shorty	Straight	—	N/A	N/A	N/A	Steel=1 Al=0 Brass=0 SS=0.3	M8×20.4	1–20%	N/A	HYPERFACE	≤200 mA	≤10 mA	-25…+85°C	<5%	—	Steel Targets Only	10–30 VDC	250 Hz	Steel Only	≤1.5 V	—	—	—	—	—
Add WSI-0802-FAAZ M8 2 mm PNP View spec	HYPERLIFE	WELDING	M8	Cylindrical	2 mm	Flush	PNP	M12	0.5m	FLEXLINC DOUBLELOC STAINLESS	IP67/IP69K	FLEXKOTE	Z	304 Stainless	YES	M8 Shorty	Straight	—	N/A	AMBER	FEP over METAL	Steel=1 Al=0 Brass=0 SS=0.3	M8×20.4	1–20%	YES	HYPERFACE	≤200 mA	≤10 mA	-25…+85°C	<5%	—	Steel Targets Only	10–30 VDC	250 Hz	Steel Only	≤1.5 V	—	—	—	—	—
Add WSI-0802-FABZ M8 2 mm PNP View spec	HYPERLIFE	WELDING	M8	Cylindrical	2 mm	Flush	PNP	M8 3P	0.5m	FLEXLINC DOUBLELOC STAINLESS	IP67/IP69K	FLEXKOTE	Z	304 Stainless	YES	M8 Shorty	Straight	—	N/A	N/A	FEP over METAL	Steel=1 Al=0 Brass=0 SS=0.3	M8×20.4	1–20%	NO	HYPERFACE	≤200 mA	≤10 mA	-25…+85°C	<5%	—	Steel Targets Only	10–30 VDC	250 Hz	Steel Only	≤1.5 V	—	—	—	—	—
Add WSI-0802-SSCH M8 2.0 mm PNP View spec	STANDARD	WELDING	M8	Cylindrical	2.0 mm	Flush	PNP	M12	0.5m	FLEXLINC DOUBLELOC STAINLESS	IP67	FLEXKOTE	Z	304 Stainless	YES	—	Straight	—	N/A	AMBER	FEP over METAL	Steel=1 Cu=0.3 Al=0.3 Brass=0.45 SS=0.7	M8 × 16	<10%	YES	HYPERFACE	≤200 mA	≤10 mA	-25…+70°C	0.1 mm	—	—	10–30 VDC	≤5 kHz	Steel Only	≤2.0 V	—	—	—	—	—
Add WSI-0803-SA2Z M8 3 mm PNP View spec	STANDARD	WELDING	M8	Cylindrical	3 mm	Flush	PNP	N/A	2m	ACTIVFLEX TUBULAR	IP67–IP69K	FLEXKOTE	ZG	304 Stainless	YES	M8 x 45mm,	Straight	—	N/A	N/A	N/A	Steel 100% Stainless St 70%, Al 100%	M8 x 60mm	3–15%	N/A	304 Stainless	≤200 mA	≤10 mA	-25…+85°C	≤0.15 mm	—	Weld-immune	10–30 VDC	15 kHz	Steel, Aluminum	≤2 V	—	—	—	—	—
Add WSI-0803-SD2Z M8 3 mm NPN View spec	STANDARD	WELDING	M8	Cylindrical	3 mm	Flush	NPN	N/A	2m	ACTIVFLEX TUBULAR	IP67–IP69K	FLEXKOTE	ZG	304 Stainless	YES	M8 x 45mm,	Straight	—	N/A	N/A	N/A	Steel 100% Stainless St 70%, Al 100%	M8 x 60mm	3–15%	N/A	304 Stainless	≤200 mA	≤10 mA	-25…+85°C	≤0.15 mm	—	Weld-immune	10–30 VDC	15 kHz	Steel, Aluminum	≤2 V	—	—	—	—	—
Add WSI-0803-SAAH M8 3 mm PNP View spec	STANDARD	WELDING	M8	Cylindrical	3 mm	Flush	PNP	M12	200mm	ACTIVFLEX TUBULAR	IP67–IP69K	ACTIVSTONE	SX	304 Stainless	YES	M8 x 45mm,	Straight	—	N/A	N/A	PLASTIC	Steel 100% Stainless St 70%, Al 100%	M8 x 60mm	3–15%	NO	304 Stainless	≤200 mA	≤10 mA	-25…+85°C	≤0.15 mm	—	Weld-immune	10–30 VDC	15 kHz	Steel, Aluminum	≤2 V	—	—	—	—	—
Add WSI-0803-SAAZ M8 3 mm PNP View spec	STANDARD	WELDING	M8	Cylindrical	3 mm	Flush	PNP	M12	200mm	ACTIVFLEX TUBULAR	IP67–IP69K	FLEXKOTE	Z	304 Stainless	YES	M8 x 45mm,	Straight	—	N/A	N/A	PLASTIC	Steel 100% Stainless St 70%, Al 100%	M8 x 60mm	3–15%	NO	304 Stainless	≤200 mA	≤10 mA	-25…+85°C	≤0.15 mm	—	Weld-immune	10–30 VDC	15 kHz	Steel, Aluminum	≤2 V	—	—	—	—	—
Add WSI-0803-SACH M8 3 mm PNP View spec	STANDARD	WELDING	M8	Cylindrical	3 mm	Flush	PNP	M8	200mm	ACTIVFLEX TUBULAR	IP67–IP69K	ACTIVSTONE	SX	304 Stainless	YES	M8 x 45mm,	Straight	—	N/A	N/A	PLASTIC	Steel 100% Stainless St 70%, Al 100%	M8 x 60mm	3–15%	NO	304 Stainless	≤200 mA	≤10 mA	-25…+85°C	≤0.15 mm	—	Weld-immune	10–30 VDC	15 kHz	Steel, Aluminum	≤2 V	—	—	—	—	—
Add WSI-0803-SACZ M8 3 mm PNP View spec	STANDARD	WELDING	M8	Cylindrical	3 mm	Flush	PNP	M8	200mm	ACTIVFLEX TUBULAR	IP67–IP69K	FLEXKOTE	Z	304 Stainless	YES	M8 x 45mm,	Straight	—	N/A	N/A	PLASTIC	Steel 100% Stainless St 70%, Al 100%	M8 x 60mm	3–15%	NO	304 Stainless	≤200 mA	≤10 mA	-25…+85°C	≤0.15 mm	—	Weld-immune	10–30 VDC	15 kHz	Steel, Aluminum	≤2 V	—	—	—	—	—
Add WSI-0803-FA2Z M8 3 mm PNP View spec	HYPERLIFE	WELDING	M8	Cylindrical	3 mm	Flush	PNP	N/A	2m	ACTIVFLEX TUBULAR	IP67–IP69K	FLEXKOTE	Z	304 Stainless	YES	M8 x 45mm	Straight	—	N/A	N/A	N/A	Steel 100% Stainless St 70%, Al 100%	M8 x 45mm	3–15%	N/A	HYPERFACE	≤200 mA	≤10 mA	-25…+85°C	≤0.15 mm	—	Weld-immune	10–30 VDC	15 kHz	Steel, Aluminum	≤2 V	—	—	—	—	—
Add WSI-0803-FD2Z M8 3 mm NPN View spec	HYPERLIFE	WELDING	M8	Cylindrical	3 mm	Flush	NPN	N/A	2m	ACTIVFLEX TUBULAR	IP67–IP69K	FLEXKOTE	Z	304 Stainless	YES	M8 x 45mm	Straight	—	N/A	N/A	N/A	Steel 100% Stainless St 70%, Al 100%	M8 x 45mm	3–15%	N/A	HYPERFACE	≤200 mA	≤10 mA	-25…+85°C	≤0.15 mm	—	Weld-immune	10–30 VDC	15 kHz	Steel, Aluminum	≤2 V	—	—	—	—	—
Add WSI-0803HL-FAAZ M8 3 mm PNP View spec	HYPERLIFE	WELDING	M8	Cylindrical	3 mm	Flush	PNP	M12	0.5m	FLEXLINC DOUBLELOC STAINLESS	IP67–IP69K	FLEXKOTE	Z	304 Stainless	NO	M8 x 45mm	Straight	—	N/A	AMBER	FEP over METAL	Steel 100% Stainless St 70%, Al 100%	M8 x 45mm	3–15%	YES	HYPERFACE	≤200 mA	≤10 mA	-25…+85°C	≤0.15 mm	—	Weld-immune	10–30 VDC	15 kHz	Steel, Aluminum	≤2 V	—	—	—	—	—
Add WSI-0803HL-FDAZ M8 3 mm NPN View spec	HYPERLIFE	WELDING	M8	Cylindrical	3 mm	Flush	NPN	M12	0.5m	FLEXLINC DOUBLELOC STAINLESS	IP67–IP69K	FLEXKOTE	Z	304 Stainless	NO	M8 x 45mm	Straight	—	N/A	AMBER	FEP over METAL	Steel 100% Stainless St 70%, Al 100%	M8 x 45mm	3–15%	YES	HYPERFACE	≤200 mA	≤10 mA	-25…+85°C	≤0.15 mm	—	Weld-immune	10–30 VDC	15 kHz	Steel, Aluminum	≤2 V	—	—	—	—	—
Add WSI-0803-SABH M8 3 mm PNP View spec	STANDARD	WELDING	M8	Cylindrical	3 mm	Flush	PNP	N/A	N/A	N/A	IP67–IP69K	FLEXKOTE	Z	304 Stainless	YES	200mm M12 Pigtail	N/A	—	N/A	N/A	N/A	Steel 100% Stainless St 70%, Al 100%	M8 x 60mm	3–15%	N/A	304 Stainless	≤200 mA	≤10 mA	-25…+85°C	≤0.15 mm	—	Weld-immune	10–30 VDC	15 kHz	Steel, Aluminum	≤2 V	—	—	—	—	—
Add WSI-0803-SABZ M8 3 mm PNP View spec	STANDARD	WELDING	M8	Cylindrical	3 mm	Flush	PNP	N/A	N/A	N/A	IP67–IP69K	FLEXKOTE	Z	304 Stainless	YES	M8 x 60mm	N/A	—	N/A	N/A	N/A	Steel 100% Stainless St 70%, Al 100%	M8 x 60mm	3–15%	N/A	304 Stainless	≤200 mA	≤10 mA	-25…+85°C	≤0.15 mm	—	Weld-immune	10–30 VDC	15 kHz	Steel, Aluminum	≤2 V	—	—	—	—	—
Add WSI-0803HL-FAA+ M8 3 mm PNP View spec	MIG+	WELDING	M8	Cylindrical	3 mm	Flush	PNP	M12	0.5m	FLEXLINC DOUBLELOC STAINLESS	IP67–IP69K	FLEXKOTE	Z	312 Stainless	YES	M8 x 60mm	45deg	—	N/A	AMBER	FEP over METAL	Steel 100% Stainless St 70%, Al 100%	M8 x 60mm	3–15%	YES	HYPERFACE	≤200 mA	≤10 mA	-25…+85°C	≤0.15 mm	—	Weld-immune	10–30 VDC	15 kHz	Steel, Aluminum	≤2 V	—	—	—	—	—
Add WSI-0803HL-FAB+ M8 3 mm PNP View spec	MIG+	WELDING	M8	Cylindrical	3 mm	Flush	PNP	M8	0.5m	FLEXLINC DOUBLELOC STAINLESS	IP67–IP69K	FLEXKOTE	Z	312 Stainless	YES	M8 x 60mm	45deg	—	N/A	N/A	FEP over METAL	Steel 100% Stainless St 70%, Al 100%	M8 x 60mm	3–15%	NO	HYPERFACE	≤200 mA	≤10 mA	-25…+85°C	≤0.15 mm	—	Weld-immune	10–30 VDC	15 kHz	Steel, Aluminum	≤2 V	—	—	—	—	—
Add WSI-0803HL-FDA+ M8 4 mm NPN View spec	MIG+	WELDING	M8	Cylindrical	4 mm	Flush	NPN	M12	0.5m	FLEXLINC DOUBLELOC STAINLESS	IP67–IP69K	FLEXKOTE	Z	313 Stainless	YES	M8 x 60mm	45deg	—	N/A	AMBER	FEP over METAL	Steel 100% Stainless St 70%, Al 100%	M8 x 60mm	3–15%	YES	HYPERFACE	≤200 mA	≤10 mA	-25…+85°C	≤0.15 mm	—	Weld-immune	10–30 VDC	15 kHz	Steel, Aluminum	≤2 V	—	—	—	—	—
Add WSI-1206-SAAH M12 6 mm PNP View spec	STANDARD	WELDING	M12	Cylindrical	6 mm	Flush	PNP	N/A	N/A	N/A	IP67–IP69K	ACTIVSTONE	SX	304 Stainless	YES	WFI ELECTRONICS	N/A	—	N/A	N/A	N/A	Steel 100% Stainless St 70%, Al 120%	M12 x 60mm	3–15%	YES	HYPERFACE	≤200 mA	≤10 mA	-25…+85°C	≤0.15 mm	32ms	Weld-immune	10–30 VDC	~600 Hz	Steel, Aluminum	≤2.0 V	—	—	—	—	—
Add WSI-1206-SAAZ M12 6 mm PNP View spec	STANDARD	WELDING	M12	Cylindrical	6 mm	Flush	PNP	N/A	N/A	N/A	IP67–IP69K	FLEXKOTE	Z	304 Stainless	YES	WFI ELECTRONICS	N/A	—	N/A	N/A	N/A	Steel 100% Stainless St 70%, Al 120%	M12 x 60mm	3–15%	YES	HYPERFACE	≤200 mA	≤10 mA	-25…+85°C	≤0.15 mm	32ms	Weld-immune	10–30 VDC	~600 Hz	Steel, Aluminum	≤2.0 V	—	—	—	—	—
Add WSI-1206-FAA+ M12 5.7mm PNP View spec	MIG+	WELDING	M12	Cylindrical	5.7mm	Flush	PNP	M12	0.5m	FLEXLINC DOUBLELOC STAINLESS	IP67–IP69K	FLEXKOTE	Z	304 Stainless	YES	WFI PARAMETERS	45deg	—	N/A	AMBER	FEP over METAL	Steel 100% Stainless St 80%, Al 100%	M12 x 60mm	3–15%	YES	HYPERFACE	≤200 mA	≤10 mA	-25…+85°C	≤0.15 mm	124ms	Weld-immune	10–30 VDC	~1 kHz	Steel, Aluminum	≤2 V	—	—	—	—	—
Add WSI-1206-FAB+ M12 5.7mm PNP View spec	MIG+	WELDING	M12	Cylindrical	5.7mm	Flush	PNP	M8	0.5m	FLEXLINC DOUBLELOC STAINLESS	IP67–IP69K	FLEXKOTE	Z	304 Stainless	YES	WFI PARAMETERS	45deg	—	N/A	N/A	FEP over METAL	Steel 100% Stainless St 80%, Al 100%	M12 x 60mm	3–15%	No	HYPERFACE	≤200 mA	≤10 mA	-25…+85°C	≤0.15 mm	124ms	Weld-immune	10–30 VDC	~1 kHz	Steel, Aluminum	≤2 V	—	—	—	—	—
Add WSI-1810-SAAH M18 10 mm PNP View spec	STANDARD	WELDING	M18	Cylindrical	10 mm	Flush	PNP	N/A	N/A	N/A	IP68 / IP69K	ACTIVSTONE	SX	304 Stainless	YES	WFI ELECTRONICS	N/A	—	N/A	N/A	N/A	Steel=1 Cu=0.85 Al=1 Brass=1.3 SS=0.4/0.8	Ø18 × std lengths (coated)	3–15%	N/A	HYPERFACE	≤200 mA	≤10 mA	-25…+85°C	≤0.5 mm	32ms	Weld-immune	10–30 VDC	≤15 Hz	Steel, Aluminum	≤2.0 V	—	—	—	—	—
Add WSI-1810-SAAZ M18 10 mm PNP View spec	STANDARD	WELDING	M18	Cylindrical	10 mm	Flush	PNP	N/A	N/A	N/A	IP68 / IP69K	FLEXKOTE	Z	304 Stainless	YES	WFI ELECTRONICS	N/A	—	N/A	N/A	N/A	Steel=1 Cu=0.85 Al=1 Brass=1.3 SS=0.4/0.8	Ø18 × std lengths (coated)	3–15%	N/A	HYPERFACE	≤200 mA	≤10 mA	-25…+85°C	≤0.5 mm	32ms	Weld-immune	10–30 VDC	≤15 Hz	Steel, Aluminum	≤2.0 V	—	—	—	—	—
Add WSI-1810-FAA+ M18 9.7mm PNP View spec	MIG+	WELDING	M18	Cylindrical	9.7mm	Flush	PNP	M12	0.5m	FLEXLINC DOUBLELOC STAINLESS	IP67–IP69K	FLEXKOTE	Z	304 Stainless	YES	WFI PARAMETERS	45deg	—	N/A	AMBER	FEP over METAL	Steel=1 Cu=0.85 Al=1 Brass=1.3 SS=0.5/0.9	Ø18 × std lengths	3–15%	YES	HYPERFACE	≤200 mA	≤10 mA	-25…+85°C	≤0.5 mm	124ms	Weld-immune	10–30 VDC	~500–800 Hz	Steel, Aluminum	≤2.0 V	—	—	—	—	—
Add WSI-3020-SAAZ M30 20 mm PNP View spec	STANDARD	WELDING	M30	Cylindrical	20 mm	Flush	PNP	N/A	N/A	N/A	IP67–IP69K	FLEXKOTE	Z	304 Stainless	YES	WFI PARAMETERS	N/A	—	N/A	N/A	N/A	Steel=1 Cu=0.9…	Ø30 std	3–15%	N/A	HYPERFACE	≤200 mA	≤10 mA	-25…+85°C	≤0.7 mm	124ms	Weld-immune	10–30 VDC	~125–400 Hz	Steel, Aluminum	≤2 V	—	—	—	—	—
Add WSI-3020-FSAA+ M30 19.7mm PNP View spec	MIG+	WELDING	M30	Cylindrical	19.7mm	Flush	PNP	M12	0.5m	FLEXLINC DOUBLELOC STAINLESS	IP67–IP69K	FLEXKOTE	Z	304 Stainless	YES	WFI PARAMETERS	45deg	—	N/A	AMBER	FEP over METAL	Steel=1 Cu=0.9…	Ø30 std	3–15%	YES	HYPERFACE	≤200 mA	≤10 mA	-25…+85°C	≤0.7 mm	124ms	Weld-immune	10–30 VDC	~125–400 Hz	Steel, Aluminum	≤2 V	—	—	—	—	—
Add WSI-3040-SAAZ M30 40 mm PNP View spec	STANDARD	WELDING	M30	Cylindrical	40 mm	Non-Flush	PNP	N/A	N/A	N/A	IP67–IP69K	FLEXKOTE	Z	304 Stainless	YES	WFI PARAMETERS	N/A	—	N/A	N/A	N/A	Steel=1 Cu=0.9…	Ø30 std	3–15%	N/A	HYPERFACE	≤200 mA	≤10 mA	-25…+85°C	≤1.4 mm	124ms	Extreme range	10–30 VDC	~125–400 Hz	Steel, Aluminum	≤2 V	—	—	—	—	—
Add WSI-3040-FAA+ M30 39.7mm PNP View spec	MIG+	WELDING	M30	Cylindrical	39.7mm	Non-Flush	PNP	M12	0.5m	FLEXLINC DOUBLELOC STAINLESS	IP67–IP69K	FLEXKOTE	Z	304 Stainless	YES	WFI PARAMETERS	45deg	—	N/A	AMBER	FEP over METAL	Steel=1 Cu=0.9…	Ø30 std	3–15%	YES	HYPERFACE	≤200 mA	≤10 mA	-25…+85°C	≤1.4 mm	124ms	Extreme range	10–30 VDC	~125–400 Hz	Steel, Aluminum	≤2 V	—	—	—	—	—
